SUMMARY OF BUSINESS ACTIVITIES
A One-stop-shop for injection moulding machines & ancillaries from 15 to 2,200ton, over 50 years of producing machines & ancillaries from our highly automated production plants. TEMI+ & IMAGOxt offers the latest in MES & Energy Monitoring. Full UK & Ireland backup for the whole of our product range.
DETAILS OF PRODUCT RANGE
WITTMANN WP80 Models
SPECIALIST AREAS
Ideal for use with injection moulded components with cold runner systems (sprues) that can be removed prior to the ejection of the component. Sprues can be deposited directly into a storage area or into the in-feed of a press-side granulator.
DEVELOPMENT FACILITIES

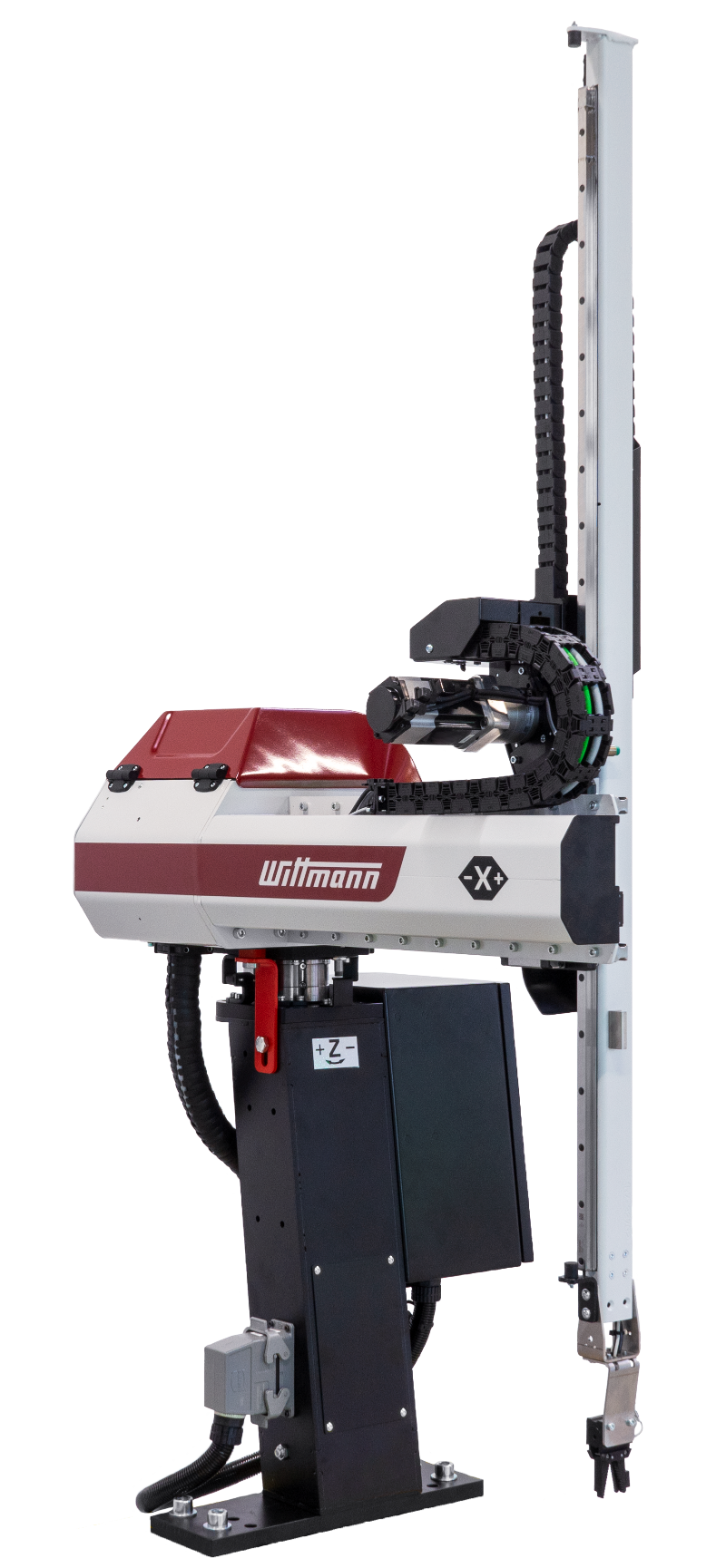

WP80 sprue picker: Pneumatic unit for the removal of sprues and parts from the injection molding machine. The solid construction allows fast movement with low vibration for precise removal. X-axis (kick-stroke) - Heavy-duty linear rails and recirculating ball bearings. - Swivel base to rotate the arm behind the fixed platen for mould changes and locating pin to precisely reposition arm for part removal. Y-axis (vertical stroke) 0–550mm (21.7“) or 700mm (27.6“) - Adjustable stroke. - Pneumatic shock absorbers. - Locking cylinder to prevent the arm from drifting down into the mold in the event of air pressure loss. The Y-axis is also equipped with a heavy-duty switch as an additional interlock before the mold can close. Energy chain for less wear of tubing. Z-axis (pivot) - Freely adjustable from 45°–95°. - Simple changeover from rear side to operator side placement. B-axis (90° tooling rotation) - Rotation is made automatically when pivoting the Z-axis out of the press. Mechanical Sprue Gripper with part monitoring. Optional - Venturi vacuum with part monitoring. - Parts gripper with 4 suction cups. Simple change from one product to another.Net8 Sprue Picker Control. For WP80 . Easy to use interface with graphical LCD display. Arrangement of buttons and symbols is similar to the CNC TeachBox for easier use by the operators. Simple sequence start. Simple Teach-In programming of the entire program sequence, including all movements, strokes, time settings and molding machine interface. 4 standard programs for easy setup. Up to 50 additional individual programs can be taught and stored. Standard moulding machine interface (SPI & E12). Full diagnostics with text error messages. The same languages as with the CNC8 control are available.
ADDITIONAL SERVICES PROVIDED

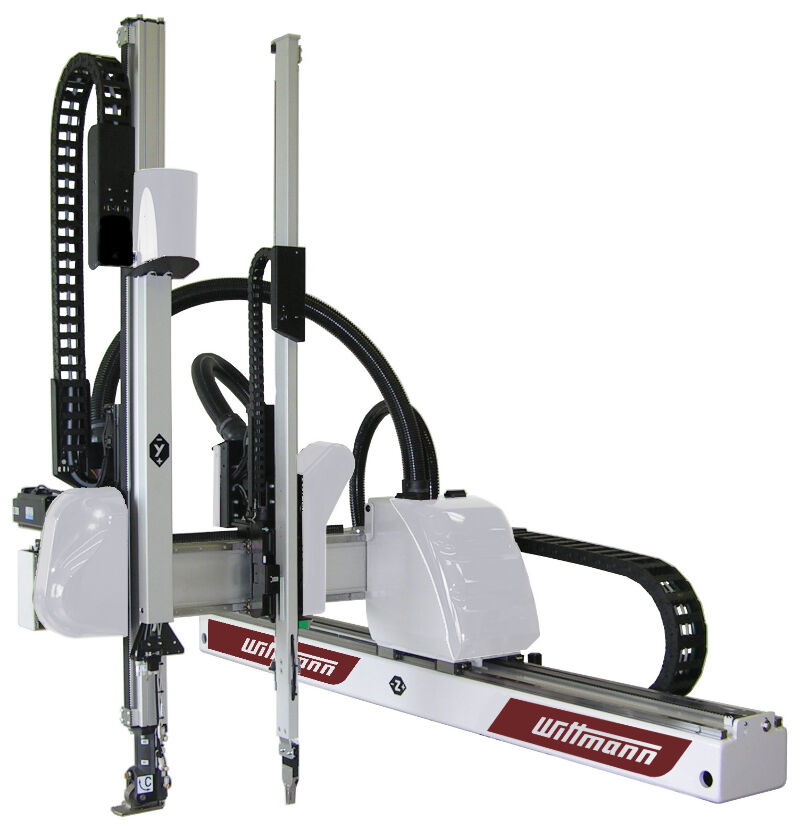

Wittmann Battenfeld supply a full range of three axis full servo robots, as well as a comprehensive range of ancillary equipment.
OTHER USEFUL INFORMATION
See our entries in the PlastikCity Plastic Ancillaries section.
